[CKA] Secret 운영

Secret 이란?

- key:value 타입으로 데이터 저장

- 데이터가 BASE64로 인코딩된 ASCII text가 들어감

- Binary Data는 ASCII text로 변환되어 BASE64로 인코딩 되어 저장

- BASE64는 암호화가 아님



※ base64 확인

# echo "a" | base64
YQo=
# echo "YQo=" | base64 -d
a



[문제]

Create a kubernetes secret and expose using a file in the pod.

1. Create a kubernetes Secret as follows:

- Name : super-secret

- DATA : password=secretpass

2. Create a Pod named pod-secrets-via-file, using the redis image, which mounts a secret named super-secret at /secrets.

3. Create a second Pod named pod-secrets-via-env, using the redis image, which exports password as PASSWORD



[풀이]

1. Secret 생성

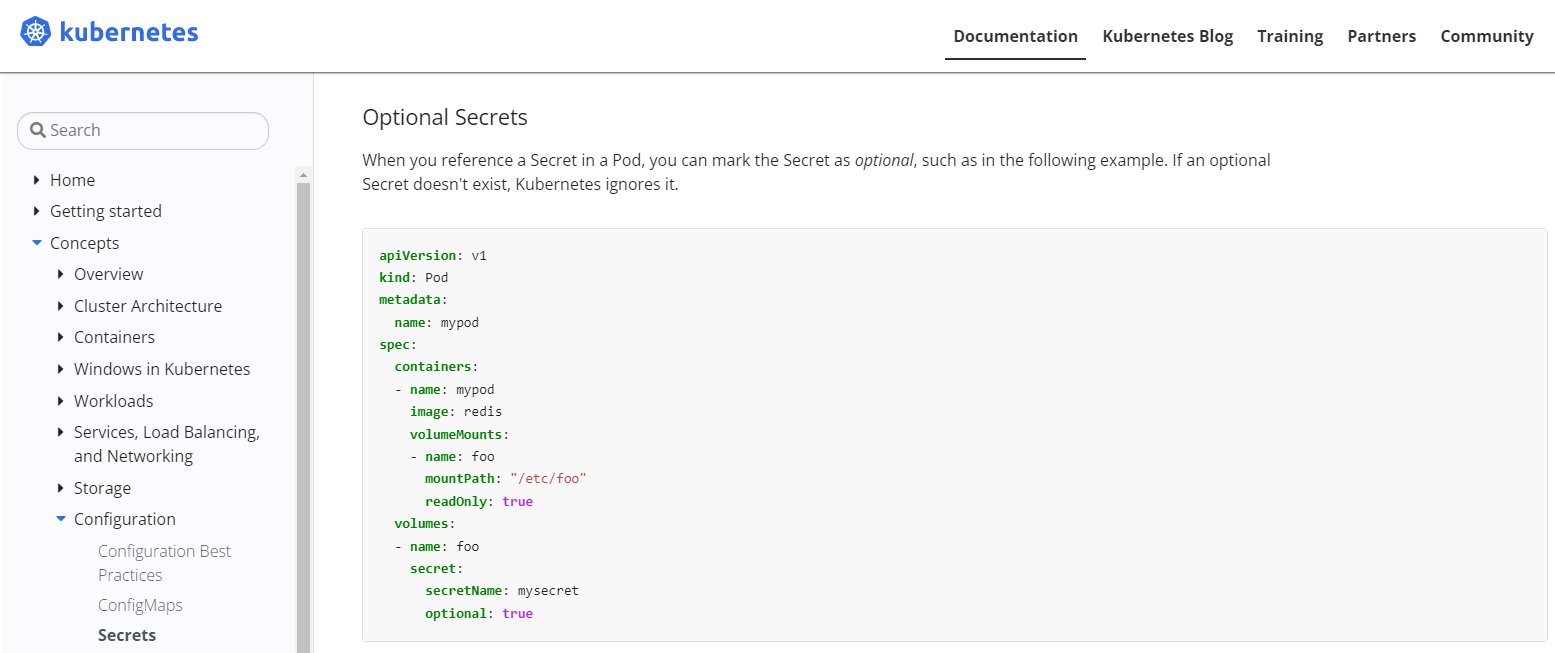

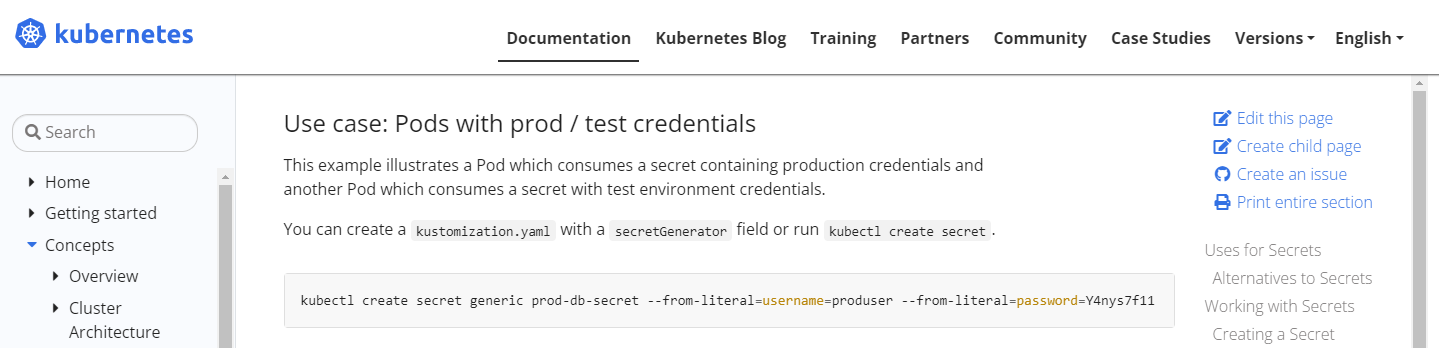

- docs의 Secret 생성 참고

https://kubernetes.io/docs/concepts/configuration/secret/#use-cases



- Secret 생성 후 확인

# kubectl create secret --help
Create a secret using specified subcommand.

Available Commands:
  docker-registry   Create a secret for use with a Docker registry
  generic           Create a secret from a local file, directory, or literal value
  tls               Create a TLS secret

Usage:
  kubectl create secret [flags] [options]

Use "kubectl <command> --help" for more information about a given command.
Use "kubectl options" for a list of global command-line options (applies to all commands).

# kubectl create secret generic super-secret --from-literal=password=secretpass

# kubectl get secrets
NAME            TYPE     DATA   AGE
super-secret   Opaque   1      10s
ttabae-secret   Opaque   2      101d

# kubectl describe secrets super-secret
Name:         super-secret
Namespace:    default
Labels:       <none>
Annotations:  <none>

Type:  Opaque

Data
====
password:  10 bytes

# kubectl get secrets super-secret -o yaml
apiVersion: v1
data:
  password: c2VjcmV0cGFzcw==
kind: Secret
metadata:
  creationTimestamp: "2023-04-01T09:39:39Z"
  name: super-secret
  namespace: default
  resourceVersion: "297219"
  uid: 2814a20f-7016-403e-af50-0858fd017cd9
type: Opaque





2.  pod-secrets-via-file Pod 생성

- docs의 Secret pod 생성 참고

https://kubernetes.io/docs/concepts/configuration/secret/#using-secrets-as-files-from-a-pod



- pod 생성 후 volume mount 된 설정에서 password 확인

# cat pod-secrets-via-file.yaml
apiVersion: v1
kind: Pod
metadata:
  name: pod-secrets-via-file
spec:
  containers:
  - name: mypod
    image: redis
    volumeMounts:
    - name: foo
      mountPath: "/secrets"
      readOnly: true
  volumes:
  - name: foo
    secret:
      secretName: super-secretroot

# kubectl apply -f pod-secret-via-file.yaml

# kubectl get pod

# kubectl exec -it pod-secrets-via-file -- ls /secrets
password

# kubectl exec -it pod-secrets-via-file -- cat /secrets/password
secretpassroot





3. pod-secrets-via-env Pod 생성

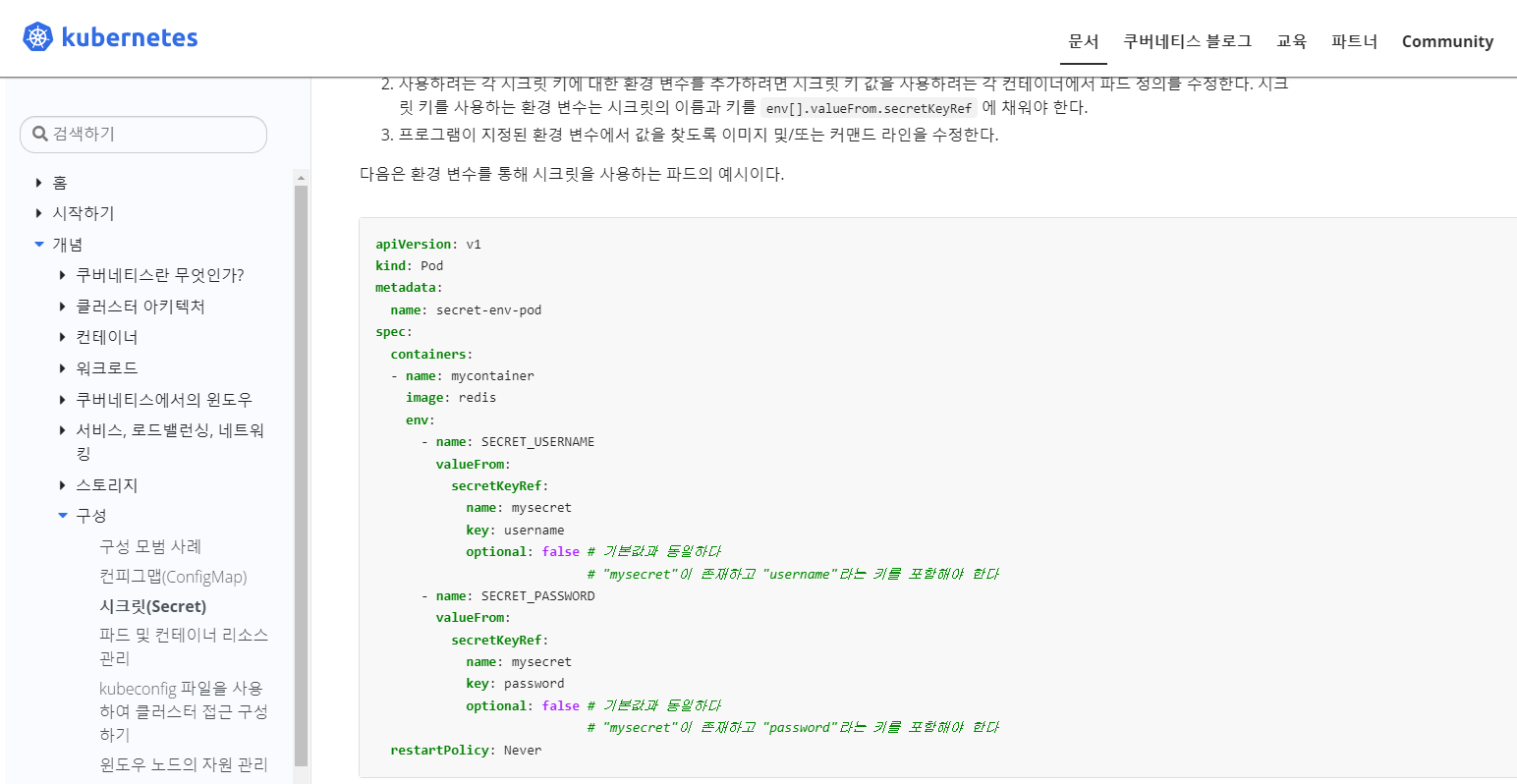

- docs의 Secret 환경변수 참고

https://kubernetes.io/ko/docs/concepts/configuration/secret/

- pod 생성 후 env 확인

# cat pod-secrets-via-env.yaml
apiVersion: v1
kind: Pod
metadata:
  name: pod-secrets-via-env
spec:
  containers:
  - name: mycontainer
    image: redis
    env:
      - name: PASSWORD
        valueFrom:
          secretKeyRef:
            name: supser-secret
            key: password

# kubectl apply -f pod-secrets-via-env.yaml

# kubectl get pod pod-secrets-via-env

# kubectl exec pod-secrets-via-env -- env
PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
HOSTNAME=pod-secrets-via-env
GOSU_VERSION=1.16
REDIS_VERSION=7.0.10
REDIS_DOWNLOAD_URL=http://download.redis.io/releases/redis-7.0.10.tar.gz
REDIS_DOWNLOAD_SHA=1dee4c6487341cae7bd6432ff7590906522215a061fdef87c7d040a0cb600131
PASSWORD=secretpass
KUBERNETES_SERVICE_PORT=443
KUBERNETES_SERVICE_PORT_HTTPS=443
KUBERNETES_PORT=tcp://10.96.0.1:443
KUBERNETES_PORT_443_TCP=tcp://10.96.0.1:443
KUBERNETES_PORT_443_TCP_PROTO=tcp
KUBERNETES_PORT_443_TCP_PORT=443
KUBERNETES_PORT_443_TCP_ADDR=10.96.0.1
KUBERNETES_SERVICE_HOST=10.96.0.1
HOME=/root





[참고]

- 유투브 따배씨
